Products & Applications

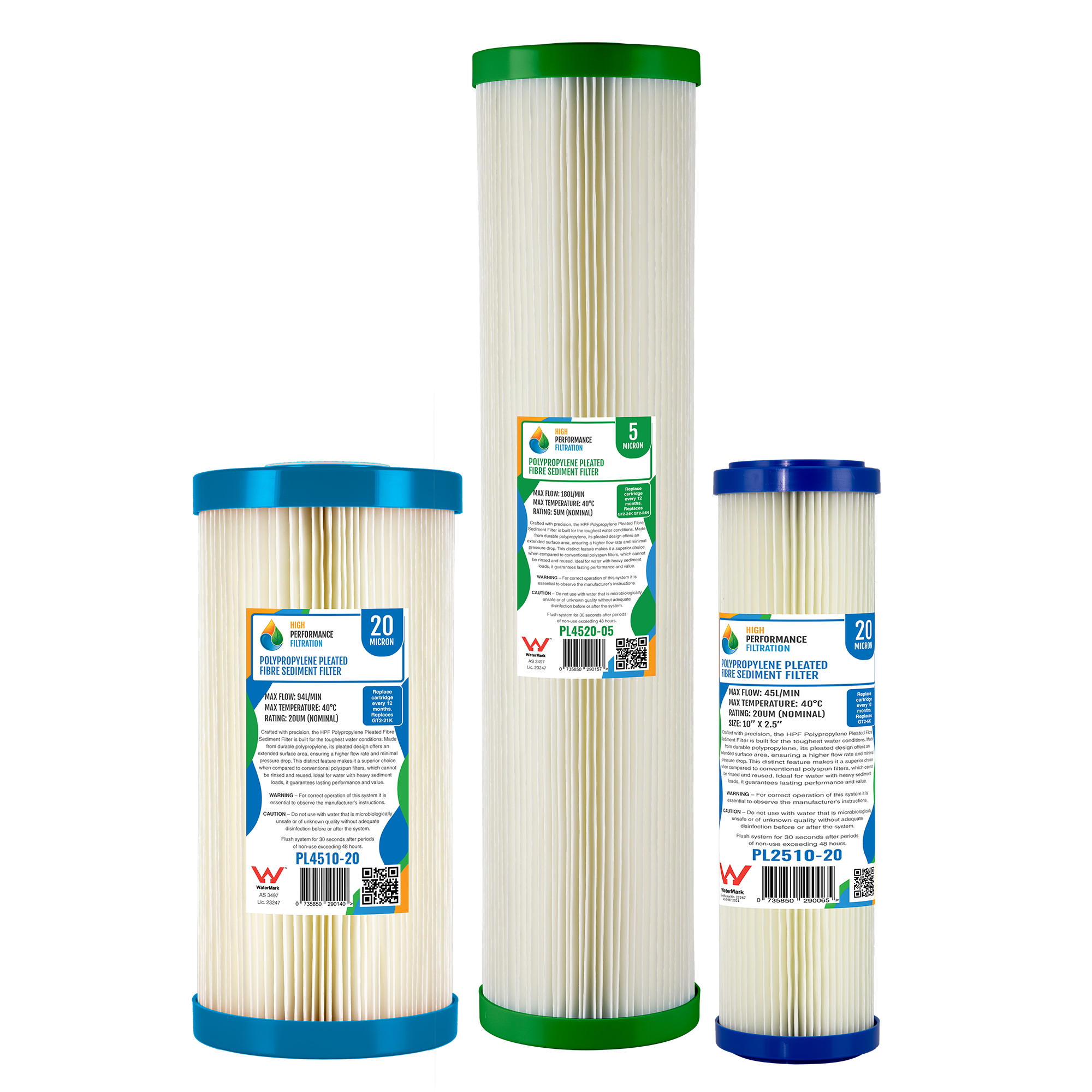

HPF Polypropylene Fibre Pleated

  • Made from 100% Virgin Polypropylene Pleated Fibre
  • Specially Designed Layers to Perform with High Efficiency & Long Life
  • Sediment, Dirt, Rust and Other Particulate Filtration
  • Low Pressure Drop & Larger Silt Holding Capacity Compared to PolySpun
  • Internal Polypropylene Core with High Pressure Resistance
  • Colour Coded End Caps & Labels for Easy Identification
  • Available in; 10” x 2.5” | 20” x 2.5” | 10” x 4.5” | 20” x 4.5”
  • Economical cost – Perfect for Residential or Light Commercial Filtration

High Performance Filtration Pleated Filters are manufactured using Virgin 100% Polypropylene Fibre. Pleated filters are best utilised where there are higher levels of sediment or dirt in the water that would usually block polypropylene spun filters prematurely.

HPF’s range of Polypropylene Pleated Filters are compatible with most liquids and are highly effective at reducing Sediment, Rust, Sand, Silt and Algae. Pleated cartridges have a much larger surface area for filtration, allowing the cartridge to have a heavier sediment load before compromising pressure or flow in a system. The increased surface area is also designed for higher flow rate systems. This allows the filter to perform exceptionally over its entire lifespan.

HPF Pleated Sediment Filters are available in 10” x 2.5”,20” x 2.5”, 10” x 4.5” & 20” x 4.5”. Micron Range from 1uM – 50uM

Part Number Filter Size [Inch] (mm) Micron Rating Cap Colour
PL2510-01 [10” x 2.5”](251 x 70) 1 RED
PL2510-05 [10” x 2.5”](251 x 70) 5 GREEN
PL2510-20 [10” x 2.5”](251 x 70) 20 BLUE
PL2510-50 [10” x 2.5”](251 x 70) 50 BLACK
PL2520-01 [20” x 2.5”](508 x 70) 1 RED
PL2520-05 [20” x 2.5”](508 x 70) 5 GREEN
PL2520-20 [20” x 2.5”](508 x 70) 20 BLUE
PL4510-01 [10” x 4.5”](254 x 115) 1 RED
PL4510-05 [10” x 4.5”](254 x 115) 5 GREEN
PL4510-20 [10” x 4.5”](254 x 115) 20 BLUE
PL4510-50 [10” x 4.5”](254 x 115) 50 BLACK
PL4520-01 [20” x 4.5”](508 x 115) 1 RED
PL4520-05 [20” x 4.5”](508 x 115) 5 GREEN
PL4520-20 [20” x 4.5”](508 x 115) 20 BLUE
PL4520-50 [20” x 4.5”](508 x 115) 50 BLACK
